WSE-4025 PoweredBLOT 2M: Streamlined Protein Blotting with Efficient Semi-Dry Technology

Elevate your research with the WSE-4025 PoweredBLOT 2M, a compact and efficient semi-dry blotting system designed to optimize your protein transfer workflow. Achieve consistent, high-quality blots with minimal buffer consumption and reduced transfer times.

Contact us

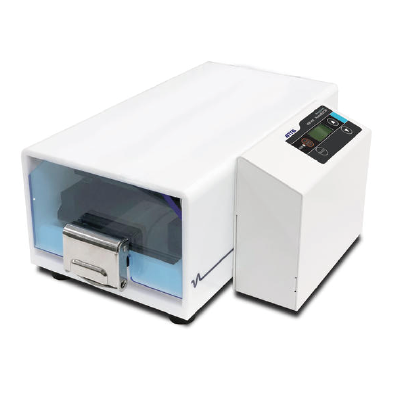

WSE-4025 PoweredBLOT 2M


The WSE-4025 PoweredBLOT 2M offers two blotting modes, fast and standard, providing flexibility to meet the specific needs of each experiment. Fast blotting mode allows for protein transfer in as little as 10 minutes, while standard blotting mode typically takes 30 to 60 minutes. This versatility caters to a wide range of research applications, from rapid screening to detailed analysis.

Learn more

Advanced Blotting Systems: Revolutionizing Protein and Nucleic Acid Transfer


Purpose and Application

These innovative blotting systems are designed for efficient protein transfer from two mini gels using semi-dry blotting techniques. They also cater to nucleic acid blotting applications, utilizing nitrocellulose membranes for effective transfer of nucleic acid samples.


Features

  • Enhanced Electrode Plate Setting: The improved electrode plate design ensures uniform and firm contact between gels and membranes, facilitating efficient and rapid protein transfer.
  • Versatile Electrode Plate Size: The electrode plate measures 205 mm x 100 mm, accommodating two mini gels simultaneously for streamlined blotting workflows.
  • Uniform Transfer Efficiency: The optimized contact between gels and membranes promotes consistent and reliable transfer efficiency, ensuring accurate protein and nucleic acid detection.
  • Flexible Blotting Modes: Standard and fast blotting modes are available to suit diverse research needs. Standard blotting typically takes 30-60 minutes under constant voltage of 12 V, while fast blotting offers rapid transfer in 10 minutes using constant voltage of 24 V.

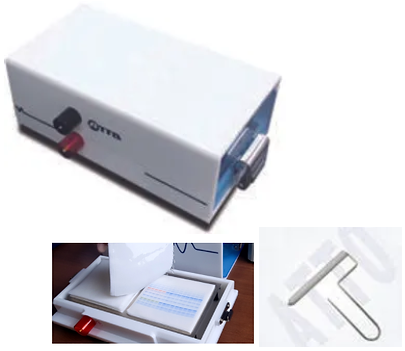

  • Ultra-Rapid Blotting with AE-1465 EzFastBlot: For even faster protein transfer, the AE-1465 EzFastBlot system can achieve transfer times as short as 10-30 minutes.
  • High Molecular Weight Protein Blotting with WSE-7210 EzFastBlot HMW: Blotting high molecular weight proteins is possible with the WSE-7210 EzFastBlot HMW system, typically requiring 30-60 minutes of transfer time.
  • User-Friendly Hand Roller: A convenient hand roller is included to facilitate the alignment and positioning of gels, membranes, and filter papers, ensuring proper contact and transfer efficiency.
  • Minimal Buffer Consumption: These blotting systems require approximately one-tenth of the transfer buffer used in wet blotting methods, reducing waste and minimizing reagent costs.
  • Reusable Electrode Plate: The chemically resistant electrode plate can be washed after use, promoting long-lasting performance and cost-effectiveness.

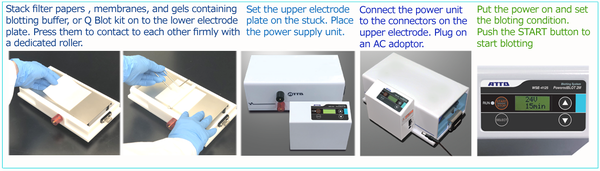

Operation Guide




Embrace the Power of Semi-Dry Technology with the WSE-4025 PoweredBLOT 2M


In the ever-evolving landscape of molecular biology, researchers constantly seek innovative tools and techniques that enhance their research capabilities and enable them to delve deeper into the intricate world of proteins. The WSE-4025 PoweredBLOT 2M emerges as a transformative force in protein blotting, revolutionizing the way researchers transfer proteins from gels to membranes for analysis.

At the heart of the WSE-4025 PoweredBLOT 2M lies the power of semi-dry technology, a departure from the traditional wet blotting methods that often involve cumbersome buffer tanks and lengthy transfer times. Semi-dry blotting eliminates the need for excessive buffer volumes, typically requiring around one-tenth of that used in wet blotting methods. This significant reduction in buffer consumption not only minimizes waste and lowers reagent costs but also contributes to a more sustainable laboratory environment. Moreover, semi-dry blotting streamlines the blotting process by eliminating buffer equilibration and replacement steps, resulting in transfer times that are up to 50% shorter than those in wet blotting. This enhanced efficiency translates into faster results, allowing researchers to analyze protein expression patterns and interactions more expeditiously.

The benefits of semi-dry blotting extend beyond efficiency and sustainability. By eliminating excess buffer, semi-dry blotting minimizes the risk of artifacts and ensures even protein transfer across the gel surface. This results in clear, high-resolution blots with minimal background staining, facilitating accurate protein detection and analysis.


In addition to its semi-dry technology, the WSE-4025 PoweredBLOT 2M incorporates several innovative features that further enhance its performance and versatility. The improved electrode plate design ensures uniform and firm contact between gels, membranes, and filter papers, maximizing protein transfer and minimizing the potential for artifacts. This feature is particularly crucial for efficient transfer of high molecular weight proteins.

The system offers two blotting modes, fast and standard, providing flexibility to accommodate diverse research needs. Fast blotting mode allows for protein transfer in as little as 10 minutes, making it ideal for rapid screening experiments or when time is of the essence. Standard blotting mode typically takes 30 to 60 minutes and is suitable for more detailed analysis and detection of low-abundance proteins.

The WSE-4025 PoweredBLOT 2M also caters to researchers working with multiple samples or performing multiple experiments simultaneously. Its ability to transfer two mini gels concurrently enhances throughput and streamlines the blotting process, allowing researchers to obtain results more quickly and efficiently.

The system's user-friendly design further elevates its appeal to researchers of all experience levels. The intuitive interface, clearly labeled components, and included hand roller make it simple to set up and operate, ensuring that even novice users can achieve consistent and reliable blots. The hand roller facilitates the alignment and positioning of gels, membranes, and filter papers, ensuring proper contact and transfer efficiency.

In conclusion, the WSE-4025 PoweredBLOT 2M emerges as a game-changer in protein blotting, offering a combination of efficiency, versatility, user-friendliness, and cost-effectiveness that empowers researchers to achieve high-quality blots with ease, confidence, and efficiency. Whether you're a seasoned scientist delving into the intricacies of protein interactions or a budding researcher embarking on your first protein blotting experiments, the WSE-4025 PoweredBLOT 2M is an invaluable tool that will transform your protein blotting workflow. Embrace the power of semi-dry technology and unlock new insights into the world of proteins with the WSE-4025 PoweredBLOT 2M.


Redefining Protein Blotting with the WSE-4025 PoweredBLOT 2M


In the dynamic realm of molecular biology, researchers tirelessly explore the intricate world of proteins, seeking innovative tools and techniques to unravel their functions and interactions. Amidst this pursuit, the WSE-4025 PoweredBLOT 2M emerges as a revolutionary force in protein blotting, redefining the way researchers transfer proteins from gels to membranes for analysis.

Semi-Dry Technology: A Paradigm Shift in Protein Blotting

At the core of the WSE-4025 PoweredBLOT 2M lies the transformative power of semi-dry technology, a departure from conventional wet blotting methods that often involve cumbersome buffer tanks and lengthy transfer times. Semi-dry blotting ushers in a new era of efficiency, eliminating the need for excessive buffer volumes and typically requiring around one-tenth of the buffer used in wet blotting methods. This significant reduction in buffer consumption not only minimizes waste and lowers reagent costs but also contributes to a more sustainable laboratory environment.

Efficiency at the Forefront: Streamlining Protein Analysis


Semi-dry blotting revolutionizes the blotting process by eliminating buffer equilibration and replacement steps, resulting in transfer times that are up to 50% shorter than those in wet blotting. This enhanced efficiency translates into faster results, allowing researchers to analyze protein expression patterns and interactions with unprecedented speed. With the WSE-4025 PoweredBLOT 2M, researchers can spend less time waiting for transfers and more time delving into the fascinating world of protein biology.

Quality and Precision: Unveiling Protein Profiles with Clarity

The benefits of semi-dry blotting extend beyond efficiency and sustainability. By minimizing excess buffer, semi-dry blotting effectively eliminates the risk of artifacts and ensures even protein transfer across the gel surface. This results in clear, high-resolution blots with minimal background staining, facilitating accurate protein detection and analysis. Researchers can now confidently interpret their blots, gaining valuable insights into protein expression levels, post-translational modifications, and protein-protein interactions.

Designed for Versatility: Adapting to Diverse Research Needs

In addition to its semi-dry technology, the WSE-4025 PoweredBLOT 2M incorporates several innovative features that further enhance its performance and versatility. The improved electrode plate design ensures uniform and firm contact between gels, membranes, and filter papers, maximizing protein transfer and minimizing the potential for artifacts. This feature is particularly crucial for efficient transfer of high molecular weight proteins, ensuring that even the largest protein molecules are accurately detected.

Dual Blotting Modes: Flexibility for Diverse Research Applications

The system offers two blotting modes, fast and standard, providing flexibility to accommodate diverse research needs. Fast blotting mode allows for protein transfer in as little as 10 minutes, making it ideal for rapid screening experiments or when time is of the essence. This mode is particularly useful for preliminary analysis or when a quick overview of protein expression patterns is desired. Standard blotting mode typically takes 30 to 60 minutes and is suitable for more detailed analysis and detection of low-abundance proteins. Researchers can select the appropriate mode based on their specific experimental requirements, ensuring optimal results for every protein blotting task.

Enhanced Throughput: Streamlining Blotting for Multiple Samples

The WSE-4025 PoweredBLOT 2M caters to researchers working with multiple samples or performing multiple experiments simultaneously. Its ability to transfer two mini gels concurrently enhances throughput and streamlines the blotting process, allowing researchers to obtain results more quickly and efficiently. This feature is particularly beneficial for high-throughput screening experiments or when analyzing multiple protein samples from different treatment conditions or time points.

User-Friendly Design: Simplifying Protein Blotting for All

The system's user-friendly design further elevates its appeal to researchers of all experience levels. The intuitive interface, clearly labeled components, and included hand roller make it simple to set up and operate, ensuring that even novice users can achieve consistent and reliable blots. The hand roller facilitates the alignment and positioning of gels, membranes, and filter papers, ensuring proper contact and transfer efficiency.


Conclusion: A New Era of Protein Blotting

The WSE-4025 PoweredBLOT 2M emerges as a transformative force in protein blotting, offering a combination of efficiency, versatility, user-friendliness, and cost-effectiveness that empowers researchers to achieve high-quality blots with ease, confidence, and efficiency. Whether you're a seasoned scientist delving into the intricacies of protein interactions or a budding researcher embarking on your first protein blotting experiments, the WSE-4025 PoweredBLOT 2M is an invaluable tool that will transform your protein blotting workflow. Embrace the power of semi-dry technology and unlock new
