Elevate Your Protein Blotting with WSE-4115 PoweredBLOT Ace

Achieve unparalleled sensitivity, reproducibility, and efficiency in protein blotting with the advanced WSE-4115 PoweredBLOT Ace system, harnessing the power of induction heating technology to streamline your Western blot workflow.

Contact us

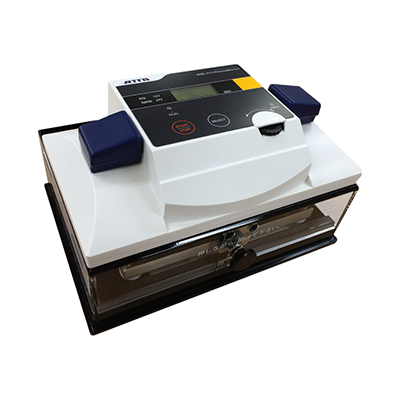

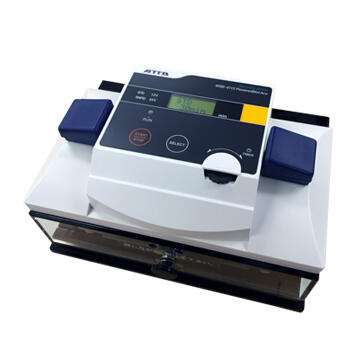

WSE-4115 PoweredBLOT Ace

The WSE-4115 PoweredBLOT Ace system simplifies and enhances protein blotting by utilizing induction heating technology for efficient and uniform protein transfer. To operate, simply prepare your gel and blotting membrane, assemble the transfer cassette, and position it within the PoweredBLOT Ace unit. Initiate the transfer process and monitor the progress on the intuitive touchscreen interface. Upon completion, retrieve your blot and proceed with antibody incubation and detection. The WSE-4115 PoweredBLOT Ace ensures consistent, high-quality protein blotting results, streamlining your research workflow.

Learn more

WSE-4115 PoweredBLOT Ace: Versatile Semi-Dry Blotting System for Protein and DNA Analysis

The WSE-4115 PoweredBLOT Ace is a compact and versatile semi-dry blotting system designed for use with either compact or mini-sized gels. It is capable of performing both semi-dry protein blotting (Western blotting) and semi-dry DNA blotting (Southern blotting). The system features a built-in power supply, two output modes for optimized transfer times, and a user-friendly interface for easy operation.


  • Semi-dry protein blotting (Western blotting)
  • Semi-dry DNA blotting (Southern blotting)


  • For use with 1 gel of compact size or mini gel size
  • Transfer of proteins or DNA from gels to membranes for detection and analysis


  • Compact and space-saving design
  • Built-in power supply
  • Two output modes for optimized transfer times:
    • STD (Standard): Constant voltage 12 V, standard transferring time 30-60 minutes (timer: 1-200 minutes)
    • RAPID: Constant voltage 24 V, standard transferring time 10-30 minutes (timer: 1-200 minutes)
  • User-friendly interface for easy operation
  • Spring-loaded upper electrode for consistent and even blotting

Additional Notes:

  • Use an appropriate transfer buffer depending on the sample being analyzed.
  • The WSE-4115 PoweredBLOT Ace is a valuable tool for researchers in various fields, including molecular biology, biochemistry, and genetics.

Compact and Efficient Blotting with WSE-4115 PoweredBLOT Ace

In the realm of molecular biology and biochemical research, protein and DNA blotting techniques are indispensable tools for analyzing the expression and interactions of these critical molecules. The WSE-4115 PoweredBLOT Ace emerges as a revolutionary semi-dry blotting system, designed to enhance your research workflow with its compact design, exceptional efficiency, and user-friendly operation.

Boasting a compact footprint, the WSE-4115 PoweredBLOT Ace seamlessly integrates into even the most space-constrained laboratories. Its integrated power supply eliminates the need for bulky external equipment, further streamlining your workspace.

The system's versatility extends to its blotting capabilities, adeptly handling both protein blotting (Western blotting) and DNA blotting (Southern blotting). With two output modes, STD (Standard) and RAPID, you can optimize transfer times based on your specific needs, achieving high-quality results in both standard and rapid blotting applications.

WSE-4115 PoweredBLOT Ace: Streamlining Protein and DNA Transfer for Research Success

The WSE-4115 PoweredBLOT Ace is not merely a blotting system; it's a catalyst for research success. Its intuitive design and user-friendly interface ensure that even novice users can achieve consistent, high-quality blots.

The system's spring-loaded upper electrode ensures even pressure distribution, eliminating uneven blotting and artifacts. This translates into clear, crisp blots that enhance the accuracy of your research results.

With the WSE-4115 PoweredBLOT Ace, you can bid farewell to time-consuming and error-prone traditional blotting methods. Its semi-dry technology minimizes buffer consumption and reduces transfer times, allowing you to focus on the meaningful aspects of your research.

Achieve High-Quality Blotting Results with the WSE-4115 PoweredBLOT Ace

In the pursuit of reliable and reproducible research results, high-quality blotting is paramount. The WSE-4115 PoweredBLOT Ace delivers exceptional results time and time again, enabling you to make confident conclusions from your blotting experiments.

The system's advanced semi-dry technology ensures efficient protein and DNA transfer, preserving the integrity of your samples and minimizing the risk of degradation. This translates into clear, high-resolution blots that capture even the faintest signals.

With the WSE-4115 PoweredBLOT Ace, you can confidently rely on the quality of your blots, empowering you to make significant contributions to your field of research.

WSE-4115 PoweredBLOT Ace: Your One-Stop Solution for Semi-Dry Blotting

The WSE-4115 PoweredBLOT Ace is more than just a blotting system; it's a comprehensive solution that caters to the diverse needs of researchers across various disciplines.

Its compact design, versatility, and ease of use make it an ideal choice for laboratories of all sizes and experience levels. Whether you're a seasoned researcher or a budding scientist, the WSE-4115 PoweredBLOT Ace seamlessly integrates into your workflow, streamlining your protein and DNA blotting experiments.

With the WSE-4115 PoweredBLOT Ace as your trusted blotting partner, you can confidently embark on your research journey, knowing that you have the tools and expertise to achieve high-quality results consistently.

ModelWSE-4115 PoweredBLOT Ace
TypeSemi-dry blotting system
Compatible gel sizeCompact or mini gel
ApplicationsProtein blotting (Western blotting), DNA blotting (Southern blotting)
Power supplyBuilt-in
Output modesSTD (Standard), RAPID
Transfer timesSTD: 30-60 minutes, RAPID: 10-30 minutes
Timer1-200 minutes
Dimensions170 × 120 × 107 mm (W × D × H)
Weight0.77 kg (excluding AC adapter, blotting plates)
Power requirements100-240 V 50/60 Hz
Electrode size95 × 98 mm (W × D)
Electrode gapMinimum: 3 mm, Maximum: 10 mm
Number of simultaneous blotsOne compact gel, one mini gel
Setup methodHorizontal (semi-dry blotting)
Blotting solution volumeApproximately 50-100 mL
Electrode polarityUpper: Cathode, Lower: Anode
MaterialMain unit: Acrylic, Upper electrode: Stainless steel (resistant to solvents), Lower electrode: Platinum-plated titanium, Power supply case: ABS resin
Accessories includedBlotting cassette, Transfer buffer, Blotting rollers


Embrace the Future of Protein Blotting

The WSE-4115 PoweredBLOT Ace emerges as a transformative force in protein blotting, offering a combination of efficiency, versatility, and user-friendliness that empowers researchers to achieve high-quality blots with ease, confidence, and efficiency. Whether you're a seasoned scientist delving into the intricacies of protein interactions or a budding researcher embarking on your first protein blotting experiments, the WSE-4115 PoweredBLOT Ace is an invaluable tool that will transform your protein blotting workflow. Embrace the power of semi-dry technology and unlock new insights into the fascinating world of proteins with the WSE-4115 PoweredBLOT Ace.

Additional Benefits:

  • Compact design: Saves valuable bench space
  • Durable construction: Ensures long-lasting performance
  • Variety of gel tray sizes: Accommodates different sample volumes and analysis needs
  • Heat-resistant gel tray and comb: Compatible with a wide range of experimental protocols
  • Safety features: Includes alarm timer and safety cover to protect researchers from hazards


The WSE-4115 PoweredBLOT Ace stands as a testament to the continuous evolution of protein blotting technology, offering a streamlined, efficient, and user-friendly solution for protein analysis. With its innovative semi-dry technology, versatility, and ease of use, the WSE-4115 PoweredBLOT Ace empowers researchers to delve deeper into the intricate world of proteins, unlocking new insights and advancing the frontiers of molecular biology.
